Out of Hybernation




In early 2001 our family moved to Texas from Lowestoft Suffolk. Initially we were not sure if it was a long term move so I put the Fury in to storage for a couple of years. Once we realized the move was for the long term I shipped the car over to Texas involving a lot of red tape.

For many reasons I won’t go in to, the Fury sat in the corner of the various garages we had for over 17 years. I had an attempt to get it running in 2009, but it would not idle at all and disappointed, I let it go to rest again.

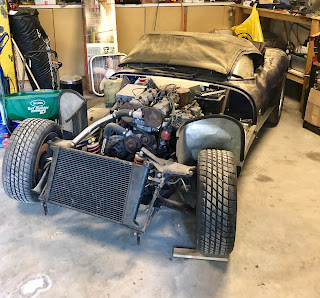

Earlier this year (2019) I cleared the way to get it on the lift and was determined to get it back on the road. I had purchased an all-round disc brake conversion and 5-point harnesses in 2007 that had sat in the boxes they came in. As the pictures illustrate it all started with a good wash.


So on March 27th this year the restoration began.




After getting it up on the lift the first task was to get the carburetors cleaned up. The state of these was why it wouldn’t run properly before. When the fuel evaporates it leaves behind a sticky residue which restricts or blocks the galleries. After a lot research to see what others had done to clean carbs up, I settled on a combination of ultra-sonic bath using a cup of Simple-Green in water at ~140F, then over-night soaking in acetone and then a blast through all the galleries with cans of carb cleaner.

 Before:


After:



The cleaning process didn't make them shine, I think you need to bead blast them to get an 'as new' finish. My engine bay is not that pretty so this will do. These are 40DCOEs which are a bit small for outright power on a 2 liter twin cam, but they make the engine very drivable and they were cheap (off an Alfa). During the rebuild I decided to switch the 32mm chokes to 34s and re-jet accordingly. The trumpets were new as well although these will be covered with a pipercross filter.

Time to get them back on the engine. This included a new fuel pressure gauge and the filter/regulator was cleaned out and fitted with a new element. After hooking up the battery, thankfully the fuel pump worked and so was not gummed up. I pumped out as much fuel as I could with the pump and syphoned off the rest as much as possible. All the hoses downstream of the filter were replaced and I'm relying on the filter to catch anything that comes off the tank or upstream lines.

I think the fuel system is ready to go.
